Irish Stairlifts & Bathrooms | D09 Foldachair

Product Watch

Foldachair D09 Lightweight folding electric wheelchair with 18 inch seat width, 12.5 inch rear wheels and 180kg max user weight.

The D09 is suited for both indoor and outdoor use thanks to its large 12.5 inch rear wheels.

Fitted with 2 removable 24V 6AH Lithium battery packs which give a maximum range of around 15.5 miles subject to use.

\Perfect for transportation in the boot of your car, or taking on holidays on airplane / cruise ships, trains etc.

The foldachair folds in 5 seconds and is lightweight for lifting into and out of the boot of your car.





The Foldachair D09 model comes with 18 inch seat width, 12.5 inch rear wheels and has max user capacity of 180kg (28 stone).

Suited to outdoor use on gravel and rough terrain.

The standard 6 cm seat cushion gives a height of 41 cm to the footplate whilst the optional thicker 10 cm cushion increases this height to 45 cm making the chair suitable for taller users.





Key Features

  • Fits easily into the trunk of most vehicles,folded measurements 77cm long x 60cm wide x 34cm deep
  • Small and portable for all car, train, and airplane travel
  • Airline friendly 24V/12AH (288 Wh) Lithium battery
  • Chargeable on or off board
  • Reliable and precise battery-life indicator
  • Safely supports up to 180kg/396lbs
  • Lightweight aluminum-alloy frame, only 26.5kg/58.5lb including battery weight
  • 5kg/52lb with batteries removed
  • Removable, washable seat cushion and back rest (washable up to 95 degree celsius)
  • Solid front and rear tires – no more punctures
  • Flip-up foot rest

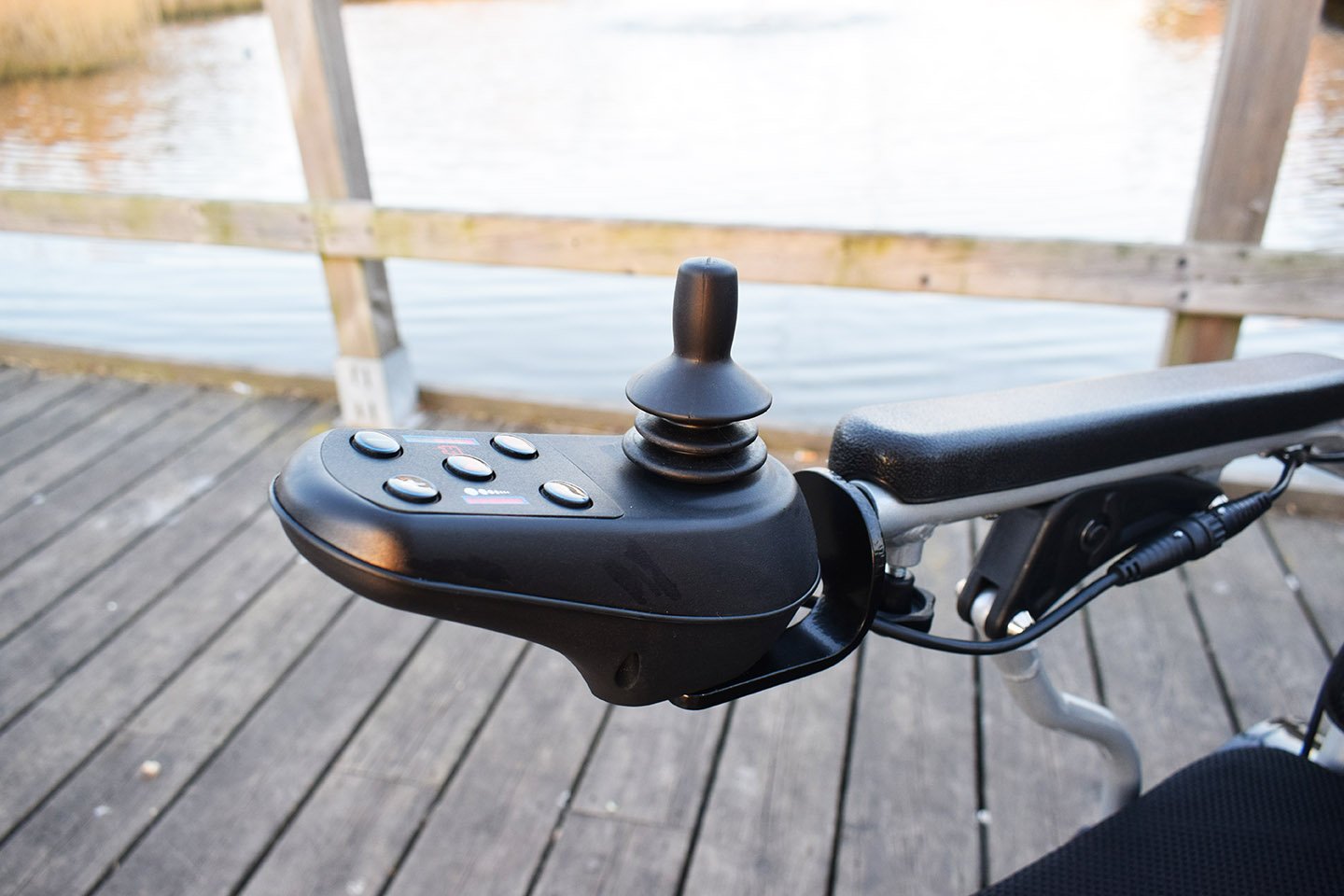

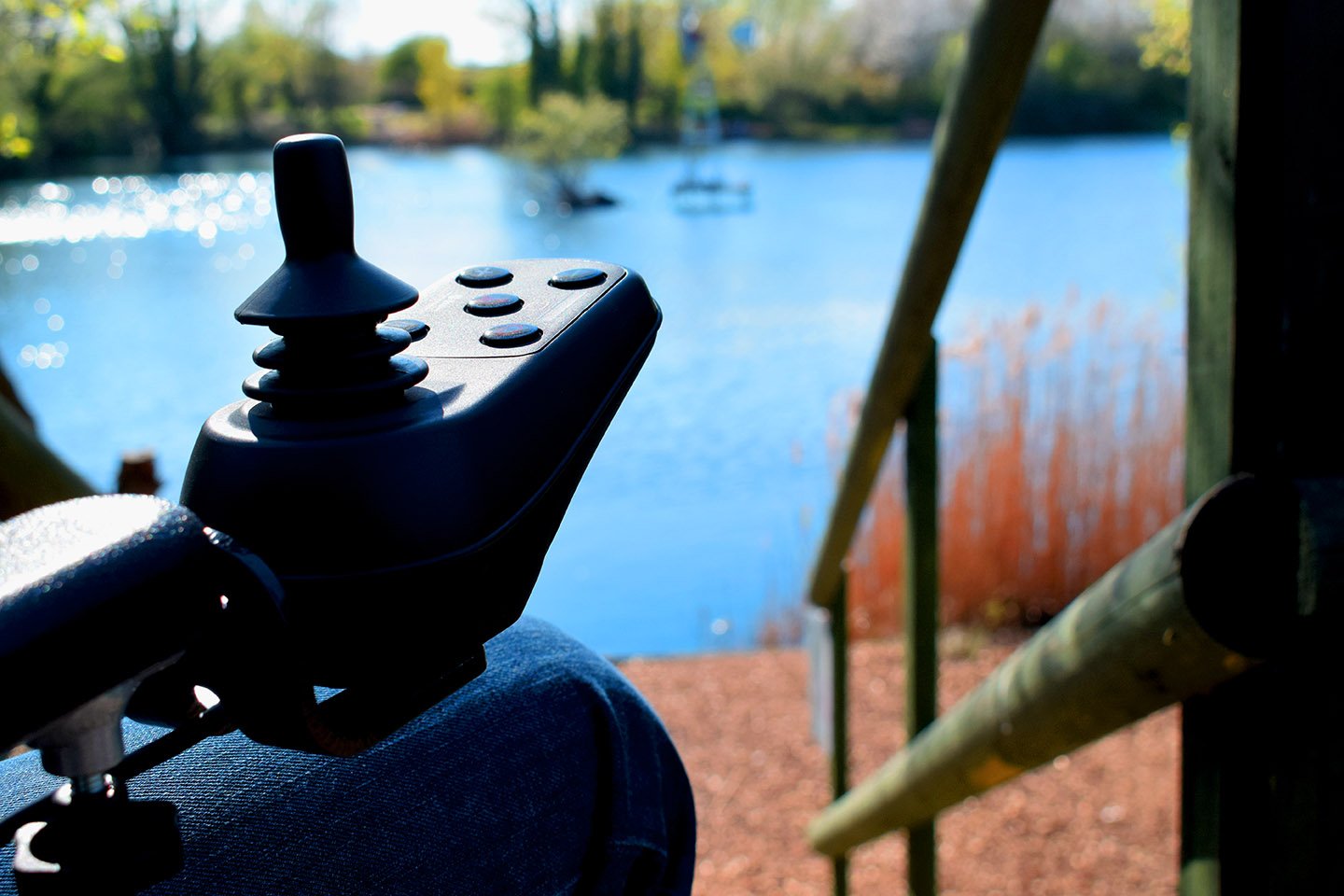

  • Reliable, easy to use 360 degree joystick controller
  • 5cm/4.5 inch ground clearance – comparable with the top all-terrain models
  • Two quiet brushless motors for ultimate power
  • Intelligent electromagnetic brake (electronic regenerative disc brake) to ensure passenger safety





Technical Specifications



Overall Length96cm/38 inches
Overall width58cm/23 inches
Overall height93cm/37″ inches
Floor to seat height19.5″
Max user weight180kg/396lb
Tyres8 inch PU solid tire(Front)

12 inch PU solid tire(Back)

Max gradient12 degrees
Top speed6km/3.7mph
Mile range (full charge)25km/15.5 miles
Seat depth43cm/17 inch
Seat width45.72cm/ 18 inch
Seat height46cm/18 inch
Steering360 degrees joystick controller
Motor2 x 250W brushless motors
Turning Radius85cm/33 inch
Battery2 x Lithium 24V/6AH; 288 wh
Charger24V/3A
Time required to fully charge battery6 -8h
Gross weight (including battery)26.5kg/58.5lb
Net weight (without battery)23.5kg/52lb



Call us now on 045 892 696 to arrange a free demonstration in our showroom
